Corrosion Resistance of Stainless Steels

The corrosion resistance of stainless steels can be significantly affected by the welding operation. We therefore would like a way to predict the corrosion resistance, and measure it, if possible. In particular, the pitting resistance of the stainless steels are important. The Pitting Resistance Equivalent Number (PREN) is a way of calculating the pitting resistance of different alloys and welds. The ASTM G48 corrosion test is a more practical way of assessing the pitting resistance of higher alloyed stainless steels.


 The WelderDestiny Compass: Weekly e-zine Subscription


You can take a look at "The WelderDestiny Compass" back-issues by clicking here.


Besides the pitting resistance, we will also look at other factors that can affect the corrosion resistance of stainless steels when we weld them.

Pitting Resistance Equivalent Number (PREN)

In relation to the corrosion resistance of stainless steels, it has been noted that Molybdenum tends to increase the pitting resistance. This is why type 316 stainless steel has a better pitting resistance than type 304 stainless steel. Type 316 contains around 2.5% Molybdenum whereas type 304 does not contain Molybdenum.

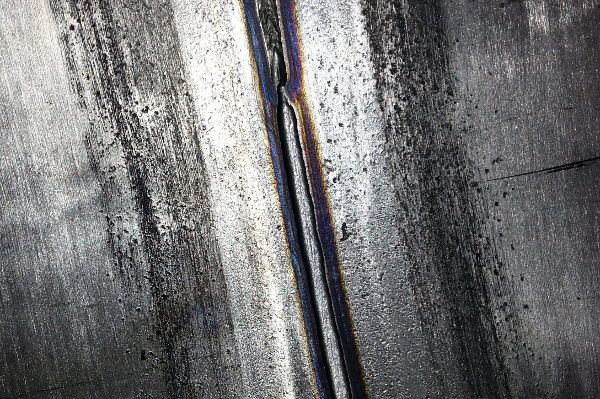

Heat Tint on Root of Stainless Steel Weld Due to Poor Backing Purge.

Besides Molybdenum, (Mo) there are other alloying elements that also tend to have this effect of improving the corrosion resistance of stainless steels by increasing the pitting resistance. The pitting resistance equivalent number is a way of taking the percentages of the alloying elements that improve pitting resistance on stainless steels, and expressing it in a number that can be compared to other alloys for estimating the pitting corrosion resistance of stainless steels.

The pitting resistance equivalent number (PREN) is calculated using the following equation:

PREN = %Cr + 3.3 x %Mo + 16 x %N

From this equation, it is clear that Nitrogen (N) has a very large impact in increasing the pitting corrosion resistance of stainless steels. (It is also a very strong Austenite former, but that is another story for another day!) The problem is that Nitrogen is difficult to get into a solid solution in high percentages, and when we melt the material during welding, the Nitrogen will tend to escape out of the molten metal. For this reason, welding filler metals will tend to include other alloying elements to compensate for the reduced Nitrogen content of welds.

So, let us compare the differences in PREN between typical 304L, 316L and type 2205 Duplex stainless steel:

  • Typical composition of 304L: Cr: 18.5%; Mo: 0%; N: 0%  = PREN of 18.5
  • Typical composition of 316L: Cr: 17%; Mo: 2.5%; N: 0%  = PREN of 25.25
  • Typical composition of type 2205 Duplex Stainless Steel: Cr: 22.5% Mo: 3.25 N: 0.16  = PREN of 35.78

From the pitting resistance equivalent numbers given above, it becomes clear that 316L is more resistant to pitting corrosion than 304L, but that the most pitting resistant of the three materials being compared is the type 2205 Duplex Stainless Steel. (DSS)

Please note that often client specifications, or material specifications may require a minimum PREN for materials in certain services such as sea water service.

Measuring the Corrosion Resistance of Stainless Steels With an ASTM G48 Corrosion Test

The PREN discussed above is based purely on the chemical composition of the material. There are however other factors that affect the pitting corrosion resistance of stainless steels, such as the condition of the surface oxide layer on the stainless steel, or the exact form that the alloying elements take within the material, or the presence of localized areas of alloy segregation or loss. For this reason, some codes and client specifications require a practical test to be done on materials, and especially weld test pieces, to prove that they have the desired pitting resistance. Such a test is described in testing standard ASTM G48.

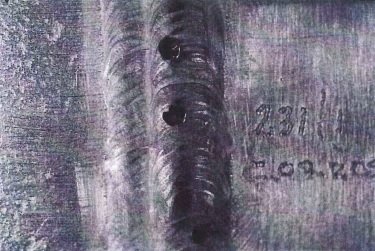

ASTM G48 Pitting Corrosion Coupon After Testing: Note pitting on weld. This test failed due to the presence of pits.

ASTM G48 describes 6 different “methods”, which are geared to different types of alloys and also the type of information required. From a welding perspective, “method A” is the most widely used test, so we will discuss this method in a little more detail. Method A is simply called the “Ferric chloride pitting test.”

In ASTM G48, Method A, a coupon of the material that is to be tested is placed in a specific ferric chloride solution and heated to a predetermined temperature and held for a predetermined time at that temperature. Typical temperatures are 25°C for duplex stainless steels (DSS) and 40°C for super duplex stainless steels. (SDSS) A typical time for the test is 24 hours, although it can be done longer.

As an example, the widely used subsea pipeline code DNV-OS-F101 requires 25 Chrome duplex stainless steels (SDSS) to be tested at 40°C for 24 hours.

The acceptance criteria vary, but generally it is a pass / fail type test based on:

  • There must be no pitting visible when viewed under low magnification of around 20 times.
  • The mass loss of the specimen must be lower than a specified limit. As an example, the DNV-OS-F101 subsea pipeline code gives a maximum mass loss of 4.0 g/m2.

Please note that some standards or specifications only require the absence of pitting, without specifying a maximum mass loss.

Also note that ASTM G48 corrosion testing is generally not a standard requirement of welding codes such as ASME IX. It is usually done to meet the requirements of a specific material specification or client standard.

It is important to note that there are many factors that can potentially affect the outcome of the ASTM G48 test. Factors such as the heat input during welding and the shielding gas practices are directly relevant to the welding procedure. Unfortunately, factors such as how the welded coupon is cleaned after welding, and how the laboratory prepares the test samples, can also have significant impacts to the results. In this regard I recommend that the cleaning practices should be such as to reduce the surface roughness and ensure a sound, continuous oxide layer on the surface. A typical example is that an overzealous use of wire brushes will result in significant scratches on the material surface, which will typically increase the mass loss found during the test. It is best to use chemical cleaning techniques to remove any unwanted oxides from the surface and leave a sound oxide layer on the affected areas.

The ASTM G48 standard is really geared toward the testing of base metals, not welds. As such it recommends that samples are prepared by “polishing” with 120 grit abrasive paper. This is not really practical for welds that have uneven and curved surfaces, hence the typical use of alternative surface preparation methods such as stainless steel wire brushes and chemical cleaning. Such alternative surface treatments are allowed by the ASTM G48 standard.

Sensitization of Stainless Steels

When the temperature on a stainless steel increases, the speed at which atoms can diffuse through the metal’s structure increases. At the same time, the speed of any chemical bonding / reactions also increase. These effects can lead to problems with the corrosion resistance of stainless steels when we weld them. One of the problems is sensitization.

In sensitization, any carbon within the stainless steel will tend to react with the Chromium to form chrome carbides. As a general rule, the carbon will be most concentrated within the grain boundaries of the stainless steel. When the carbon then forms the chrome carbides, a lot of chrome is removed from the solid solution just next to the grain boundaries. These grain boundary areas are then depleted of the main alloying element that gives stainless steels their anti-corrosion properties. A stainless steel that has been affected in this way is said to be “sensitized”.

Microstructure of Austenitic Stainless Steel Suffering From Sensitization.

When a sensitized stainless steel is exposed to a corrosive environment, there will be a preferential corrosive attack along the grain boundaries. This type of attack can occur very rapidly, and can result in catastrophic failure of the affected component or structure. In short, sensitization is very bad for the corrosion resistance of stainless steels.

The temperature at which this sensitization occurs in stainless steels is generally accepted to be between 500°C and 800°C, although for some alloys it can be as low as 420°C and as high as 850°C. Below the sensitizing temperature range the diffusion of the atoms in the material, along with their reactivity is not enough to result in the sensitization to occur. Above the sensitization temperature, the chrome carbides tend to dissolve back into the base metal, reversing the negative effect on the corrosion resistance of stainless steels.

It therefore becomes clear that when welding a stainless steel, there will always be a band along the weld edges that will be exposed to the sensitizing temperature range. The longer the material is exposed to the sensitizing temperature, the greater the amount of sensitization. When a welded component displays reduced corrosion resistance of stainless steels along the sides of the weld, due to this sensitization, it is termed “weld decay”.

In earlier days this reduced corrosion resistance of stainless steels due to sensitization was a significant problem, but it has been largely eliminated by a number of alloy refinements, such as:

  • Low carbon grades of stainless steels: The lower the carbon content of the “L” grades (e.g. 304L and 316L) means that there is less carbon to tie up the chromium in chrome carbides. The low carbon grades have carbon contents of lower than 0.03%. The main down side of the low carbon grades is that their strength at moderately high temperatures are lower than the grades with higher carbon content.
  • Stabilized grades of stainless steel: Alloying elements such as Titanium (Ti) and Niobium (Nb) (Also called Columbium (Cb)) form carbides preferentially to chromium. When the stainless steel is alloyed with small quantities of titanium or niobium, then the carbon is tied up by these elements, ensuring that the chrome content is not lowered significantly. This largely solves the sensitization problem. Typical stabilized alloys are type 321, (Ti stabilized) and type 347 (Nb stabilized) stainless steel. Under specific circumstances, stabilized grades can also suffer from chrome depletion leading to very narrow bands of corrosion on either side of the weld. This is termed “knifeline attack”. As a general rule however, this is not a problem, but must be borne in mind.

The corrosion resistance of stainless steels that have been sensitized, can be returned by taking the temperature of the entire component high enough to return the chromium into solution and then cooling rapidly. Typically this will be a temperature in excess of 1000°C. Unfortunately, this operation is often not practical. Once large structures have experienced sensitization, not much can be done other than replacing the affected material.

There are standard tests to find out if the corrosion resistance of stainless steels have been reduced due to sensitization. Sometimes these are required by client standards when higher carbon grades of stainless steel needs to be able to withstand corrosive environments. One standard to which such testing is typically done is ASTM A262.

Stress Corrosion Cracking (SCC)

Another way in which welding can affect the corrosion resistance of stainless steels is by introducing conditions that can lead to stress corrosion cracking. Stress corrosion cracking occurs in many different materials, in the presence of different corrosive media, but it is especially prevalent in austenitic stainless steels in the presence of chlorides.

Micrograph of Chloride Stress Corrosion Cracking of Austenitic Stainless Steel.

SCC occurs when the following three conditions are met simultaneously:

  • A susceptible material.
  • Exposed to a specific corrosive environment. This would include a specific corrosive, at a suitable temperature and in an electrolytic environment. (In other words, there needs to be a liquid medium that can lead to the flow of ions through the liquid.)
  • The material must be experiencing a tensile stress. The higher the stress level, the greater the susceptibility.

In the classic SCC of austenitic stainless steels, the factors come together as follows:

  • An austenitic stainless steel such as 304 or 316 stainless steel.
  • The most common corrosive environment is a solution which contains chlorides. (e.g. sea water) For the SCC to occur, the temperature typically needs to be above 60°C. The higher the temperature the faster the SCC will occur.
  • Any weld results in high residual stresses in the weld and the material directly adjacent to the weld.

Due to this very prevalent SCC mechanism in the presence of chlorides, this situation has been given its own name. It is called Chloride Stress Corrosion Cracking (CSCC) of austenitic stainless steels, and is one of the main factors to consider when evaluating the corrosion resistance of stainless steels for any application.

If the component is small enough, then the SCC corrosion resistance of stainless steels can be restored by relieving the welding related stresses. This can be achieved by subjecting the component to a quench anneal heat treatment following welding. For many components this treatment is however not practical. This means that it is almost impossible to prevent CSCC of welded austenitic stainless steels under the operating conditions mentioned. Under those conditions, other more resistant alloys need to be used. Typically duplex stainless steels, ferritic stainless steels, super austenitic stainless steels or nickel or copper based alloys.

Reduced Corrosion Resistance of Stainless Steels Due to Surface Contamination

The corrosion resistance of stainless steels is reliant on a surface layer of a very adherent chrome oxide. This chrome oxide layer forms all by itself in the presence of oxygen. When the surface layer is damaged, it generally tends to re-form rather rapidly in the presence of oxygen, restoring the corrosion resistance. The big secret is that there needs to be oxygen present to re-form the chrome oxide layer. Under conditions where the material is starved of oxygen, rapid localized corrosion is possible.

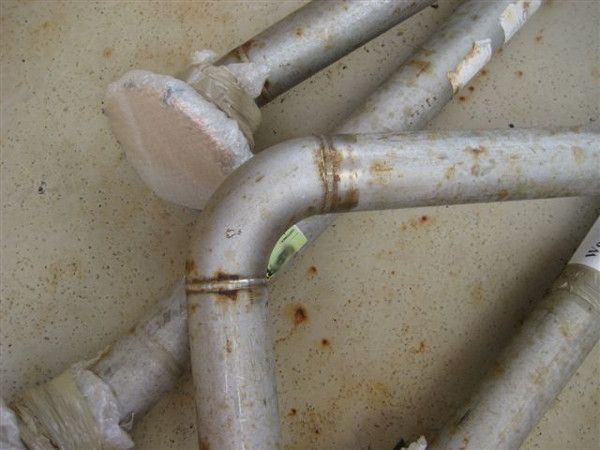

Corrosion Due to Surface Contamination of Pipe Spools: Note that these are new spools, so the corrosion has been very rapid.

Such oxygen starved conditions are typically found locally on the surface of stainless steels under the following circumstances:

  • In crevices in the stainless steel. (Leading to crevice corrosion.)
  • Coatings that are not very adherent to the surface of the stainless steel. Once again, introducing a crevice like condition.
  • Thick oxide layers that are not as adherent as the thinner oxide layers. This can happen when stainless steels are heated to high temperatures in the presence of oxygen. This often happens in the heat affected zones of stainless steel welds where the shielding has not been adequate. Again, any breakdown of this thicker oxide layer will result in a very localized crevice, leading to pitting corrosion. An additional issue is that the thick oxide layer was formed at the expense of some of the chrome close to the stainless steel’s surface, making these surface areas depleted in chrome and therefore less resistant to the corrosive attack.
  • Where material of lower corrosion resistance has perforated the surface oxide layer. Typically this happens when ordinary iron or steel gets embedded in the surface oxide layer. In this case there is a galvanic corrosion effect on the iron, causing it to rust away in that local spot, essentially introducing a small localized crevice. At that point, pitting corrosion will typically start.

It is therefore very clear that any operations that result in “heat tinting” of the material, such as welding, can severely reduce the corrosion resistance. In addition, any operation that can introduce iron contamination into the surface oxide layer can also reduce the corrosion resistance. This reduction of the corrosion resistance of stainless steels can easily happen if tools contaminated with iron is used on the stainless steels.

Typical examples of this are:

  • Using grinding discs on stainless steels that were previously used on steel.
  • Letting grinding sparks from steel impinge on stainless steels.
  • Handling stainless steel with steel slings.
  • Using ordinary steel wire brushes on stainless steel.
  • Rolling stainless steel on steel rollers, or using any steel tools on stainless steel.

The best approach is to try to eliminate any source of surface contamination of the stainless steel. Where some contamination or heat tinting has occurred, or is inevitable (e.g. you do not have the necessary stainless steel tooling) then performing a pickling and passivation treatment on the stainless steel’s surface can restore the corrosion resistance of stainless steels.
